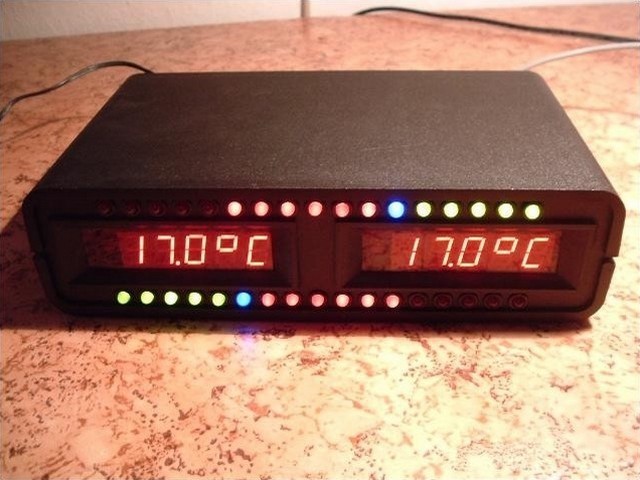

A two channel thermometer. The bars show the temperature with 2.5°C per LED. If only one sensor is applied both displays show the same.

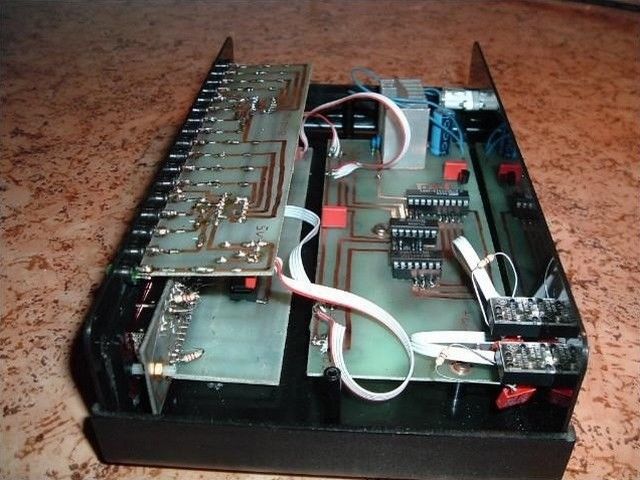

This was my first project with etched PCB's. I had to draw the circuit by hand because I didn't have any PCB equipment at that time. That's why this project has a certain sentimental value for me.
