Steam Engine

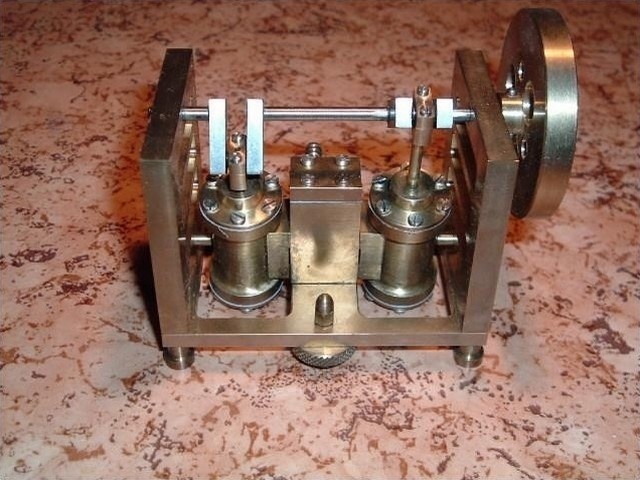

I made this steam engine during my apprenticeship at a university. The technical design was taken from drawings and scaled down to 75% of the original. Some of the optical design is my own.

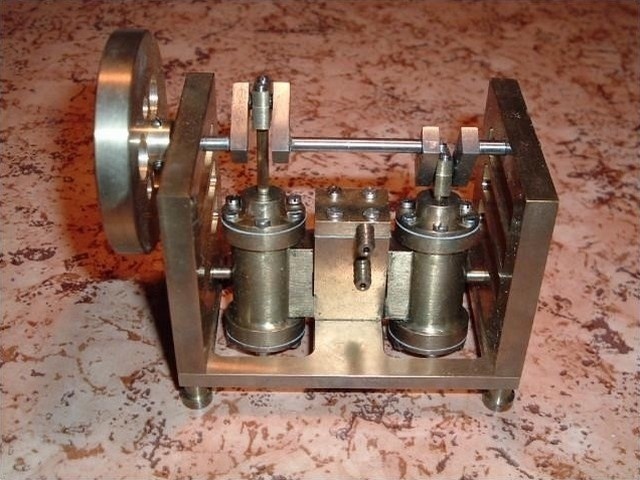

Here are the steam inlet and outlet. The engine does not have a "dead point" due to the angle of 90° between the two coils.

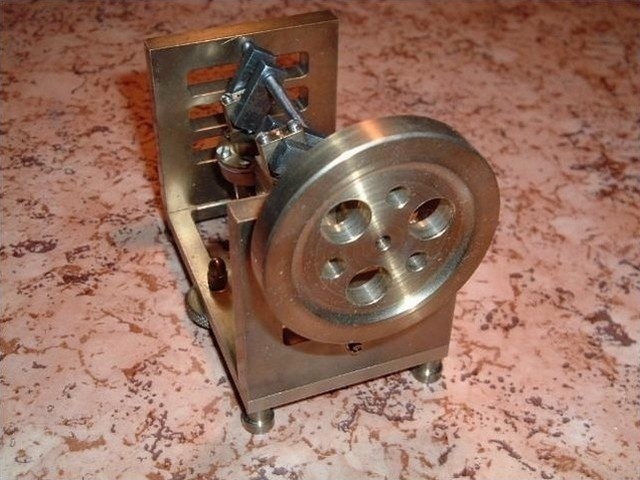

The flywheel is an example of my own design.

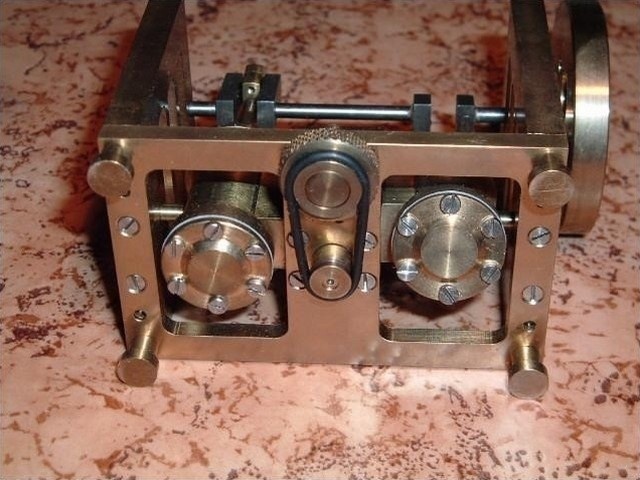

This is the control wheel that is connected to the actual mechanics via a rubber band. This was also my design. The original design had a leaver attached. The running speed of the engine can be controlled freely with this wheel.
